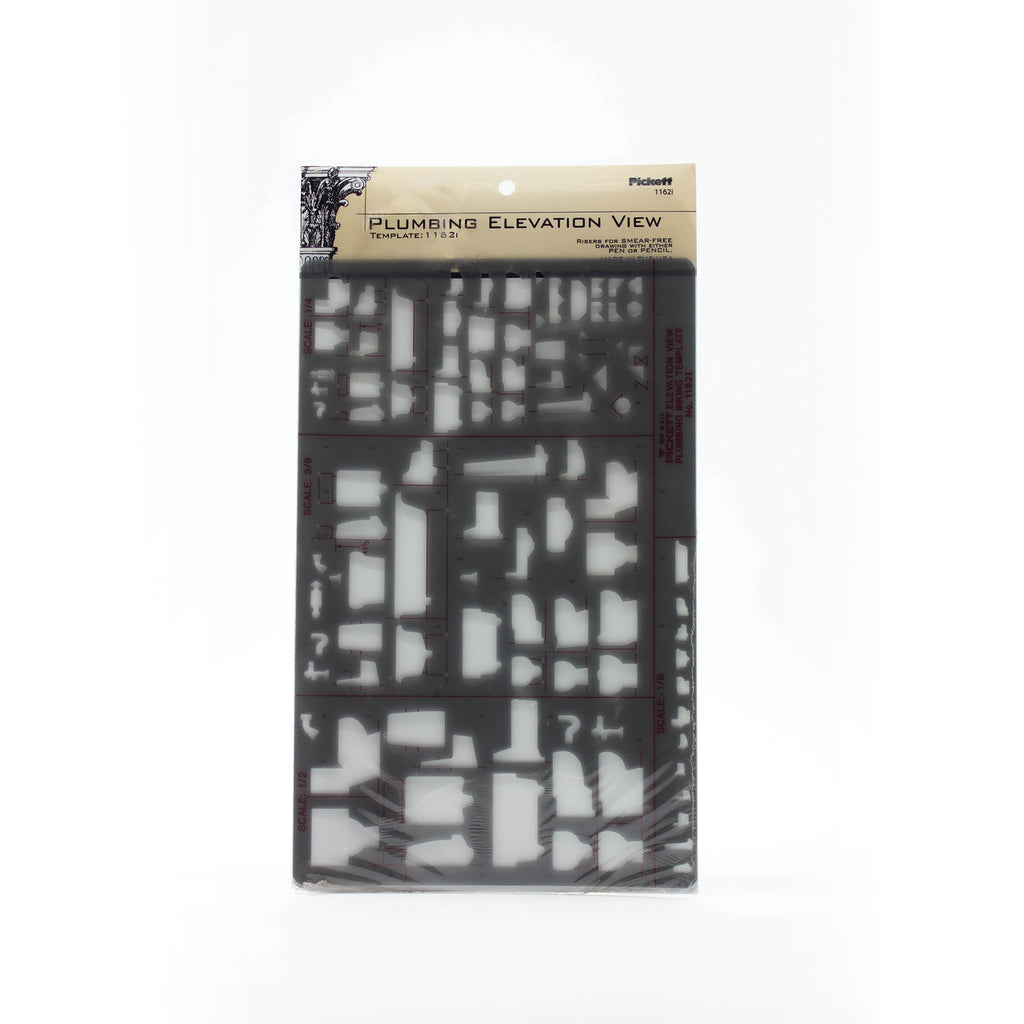

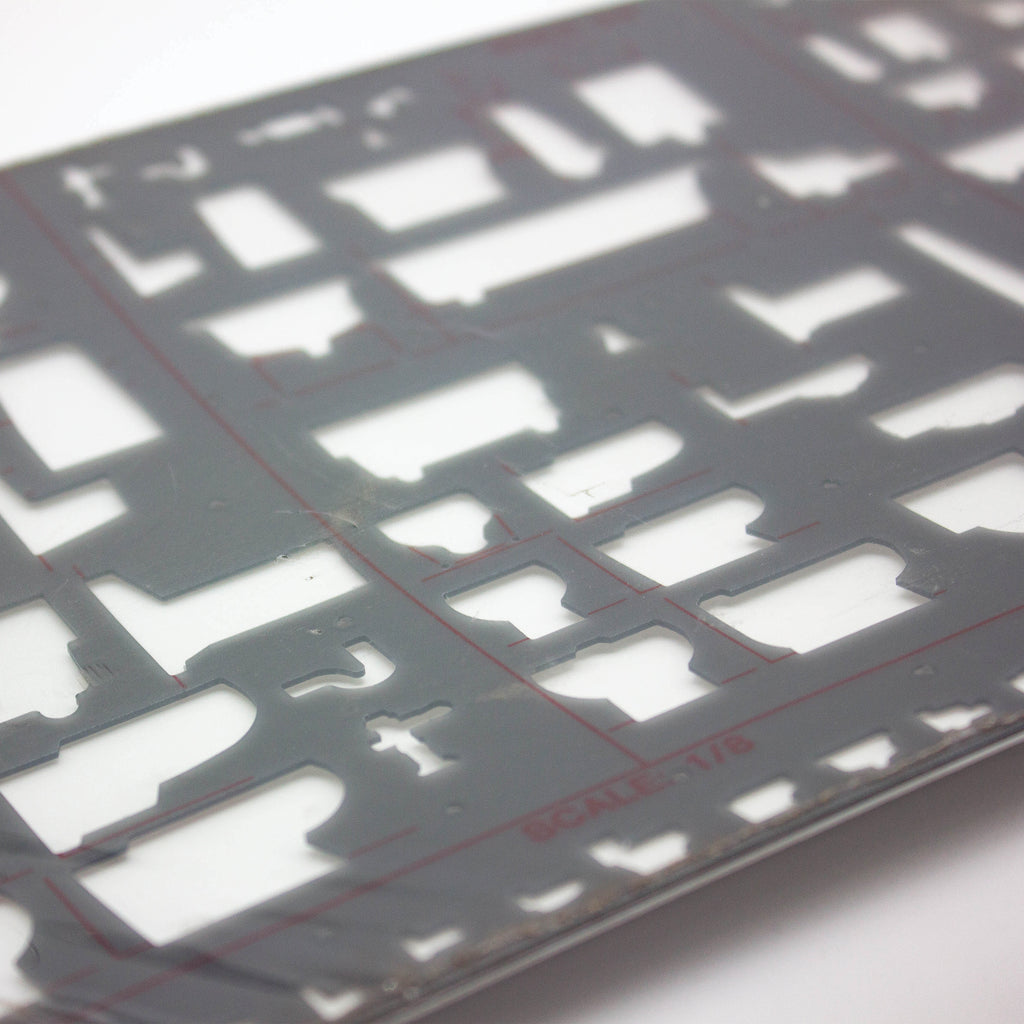

Architectural templates are available in many styles to suite your drafting needs. Precision-engraved apertures ensure single-stroke accuracy. Templates come in a smoke grey color with a matte, non-glare finish. Templates feature ink risers to facilitate clean, smudge-free inking and easy pick up and repositioning. Chartpak templates are scratch-resistant and distortion-free. For best results, use with technical pen or pencil. Contains standard lavatory & institutional plumbing fixtures in four scales: 1/8", 1/4", 3/8", 1/2" with printed centering lines. Size: 6-3/4" x 10-1/2". Thickness: 0.030".
